All L-16 TRACK products

L-16 TRACK

Product code: 108593.02

T-48 MINI: MOD. OP 8W DALI 48V 3K NE

L-16 TRACK
L-16 TRACK
L-16 TRACK - Technical datasheet
Features
Use:
Indoor
Type of installation:
TRACK
Emission:
DIRECT
Optics:
OPAL
Colour:
BLACK
Dimming:
DALI
Emergency:
NO

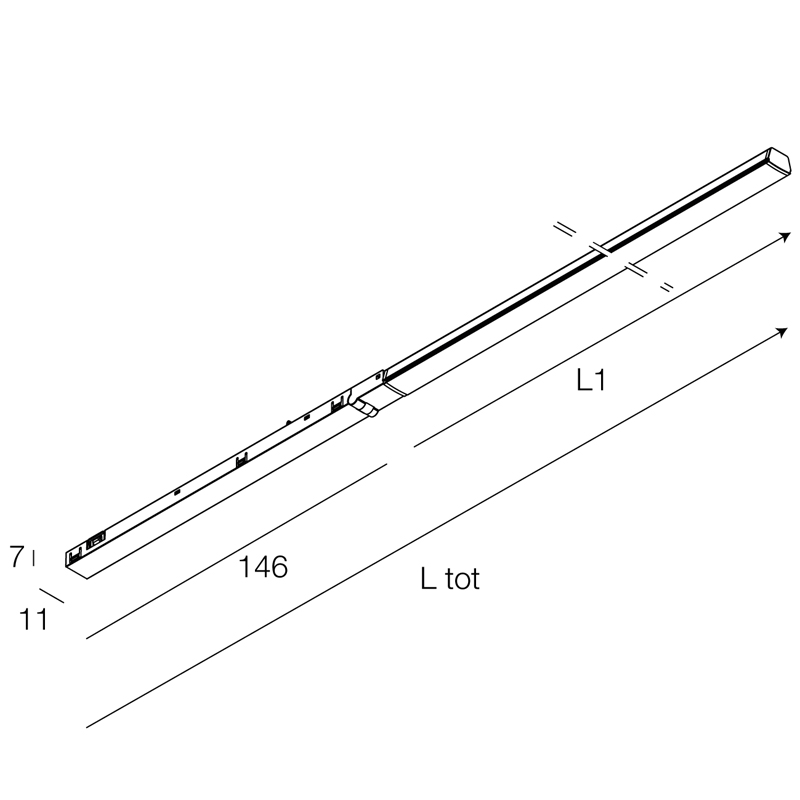

L:
674mm
H:
7mm
Made in:
ITALY
Warranty:
5 years
Tech data
Luminaire input power:
8W
Luminaire luminouse flux:
429lm
IP:
20
Insulation class:
III
Supply voltage:
48 Vdc
SELV:
No
Source
Light source:
LED
Source power:
7.4W
Source luminous flux:
900lm
Colour temperature:
3000K
CRI:
>90
Colour tolerance:
3 Step MacAdam
LED lifespan:
50000h L90 B10
Conformity
CEI EN 60598-1:2021 + A11:2023, CEI EN 60598-2-1:2022
Photobiological risk

RISK GROUP 1

Certified fixture in RISK GROUP 1 (Low Risk)-The fixture does not pose a hazard due to normal behavioral limitations on exposure - in accordance with CEI EN 62471:2010-01, IEC TR 62778:2014.

CAM edilizia

The product complies with the requirements for public buildings, ministerial decree of 23rd June 2022 n.256.
