Features
- Use:
- Indoor
- Type of installation:
- RECESSED INTO PLASTERBOARD
- Emission:
- DIRECT
- Optics:
- SPOT
- Beam:
- 30°
- Colour:
- WHITE
- Dimming:
- NO
- Emergency:
- WITH ACCESSORY

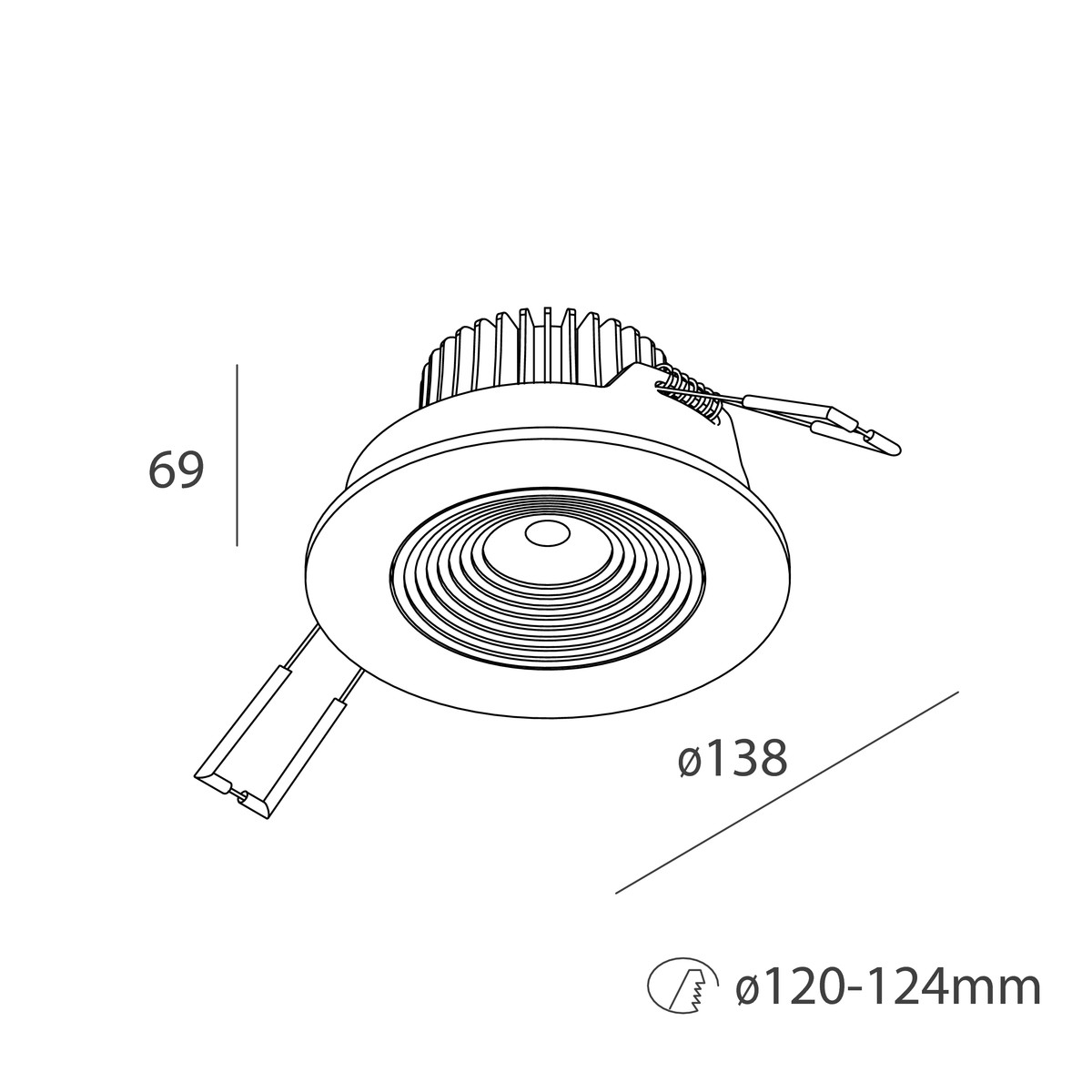

- A:
- Ø138mm
- H:
- 69mm
- D:
- 120-124mm
- Warranty:
- 5 years
- Weight:
- 0.61kg
Tech data
- Luminaire input power:
- 12W
- Luminaire luminouse flux:
- 1238lm
- Luminous flux in emergency:
- 50%
- IP:
- 20
- Insulation class:
- II
- Supply voltage:
- 220-240V 50/60Hz
- UGR:
- <19
- SELV:
- No
Source
- Light source:
- LED
- Source power:
- 12W
- Colour temperature:
- 4000K
- CRI:
- >80
- LED lifespan:
- 30000h L70 B20
Download
Conformity
CEI EN 60598-1:2015 + A11:2009. IEC 60598-2:2015 2-1, 2-2
Photobiological risk
RISK GROUP 0
Certified fixture in EXEMPT GROUP, in accordance with CEI EN 62471:2010-01, IEC TR 62778:2014.
